Full-Motion iJ VCC

Your best ally for energy saving in commercial refrigeration applications

Recent regulations on natural refrigerants and energy efficiency are driving manufacturers of commercial and professional plug-in refrigeration units to embrace new technologies.

Propane R-290 is now the most widely used natural refrigerant and VCC inverter compressors are an increasingly popular solution for improving energy savings.

Full-Motion VCC technology

The acronym VCC (Variable Capacitive Compressor) is used to describe variable-speed compressors. In refrigeration, we commonly find hermetic piston compressors (equipped with an inverter), with capacities up to 16cc designed to manage natural refrigerants, such as R-290 and R-600.

The iJ range runs Full-Motion VCC compressors. The thermostat determines the compressor speed depending on the cooling demand of the unit. This maximises energy savings and ensures optimal temperature stability.

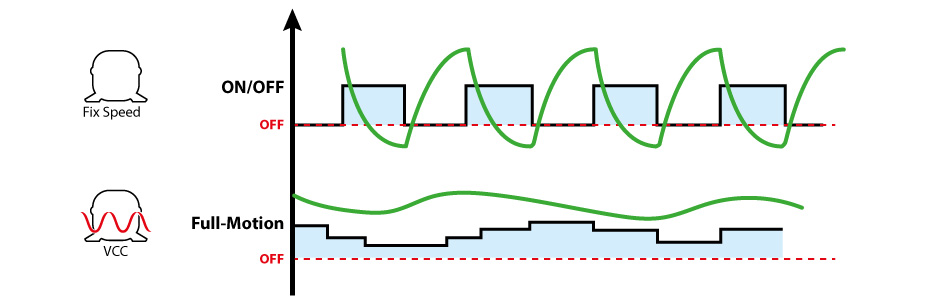

The chart below illustrates how compressor speed management using the CAREL iJ controllers achieves much more stable regulation.

This prevents the compressor from switching on and off continuously, reducing energy consumption and noise and prolonging the service life of the compressor.

Plus

	lower energy costs by reducing consumption
	better food preservation resulting from more stable settings
	a quieter environment due to lower compressor noise

iJ, a comprehensive range for controlling VCC compressors

iJ is CAREL's second generation of controllers for commercial refrigeration units and supports Frequency and Serial Full-Motion modulation of VCC inverter compressors.

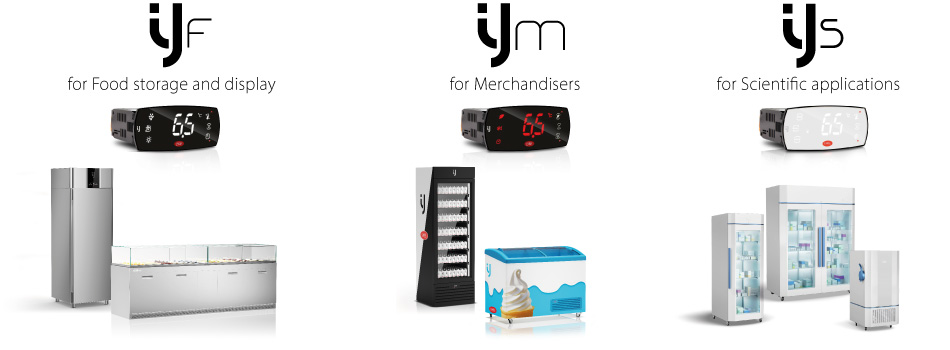

More than a single controller, iJ is a comprehensive hardware and software range for Food Storage and Display, Monoblock, Merchandiser and Scientific applications.

Offering a wide range of HW options, advanced functions, protection, and value-added services, iJ meets all the needs of plug-in refrigeration unit manufacturers.

Some of the main functions of the iJ range are listed below.

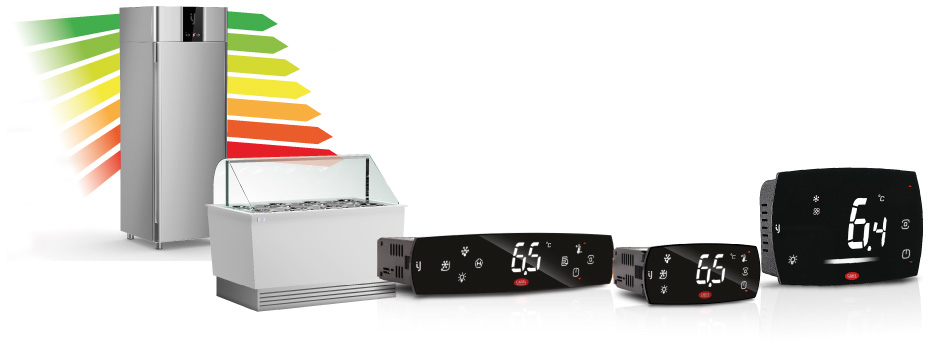

Premium appearance available in different models: Small, Large, XL and versions: Panel, Split and HMI
Modulating load management, such as EC fans and dimmable LEDs
Moisture probe management for optimal product preservation
Low energy consumption with smart logic built into the algorithm
High Low Voltage protection for longer compressor service life
Zero Crossing protection for reduced risk of relay sticking
Two coating options (Curable and Conformal) to protect the circuit board from external elements
Built-in local connectivity for easy interaction with the thermostat via CAREL apps: Applica and Controlla
RS-485 BMS port integrated into the controller so no converter is required to connect to the remote monitoring system or local supervisor

From local to remote connectivity, iJ offers a range of services (apps and cloud portals) to allow different types of users to interact with the unit smartly. The iJ controller, apps and cloud portal can be customised according to the manufacturer's brand.

iJ is not just a controller. It is a whole range for high efficiency!

Read the success story iJ website
