Atmospheric pressure steam distributors

SA*

General characteristics

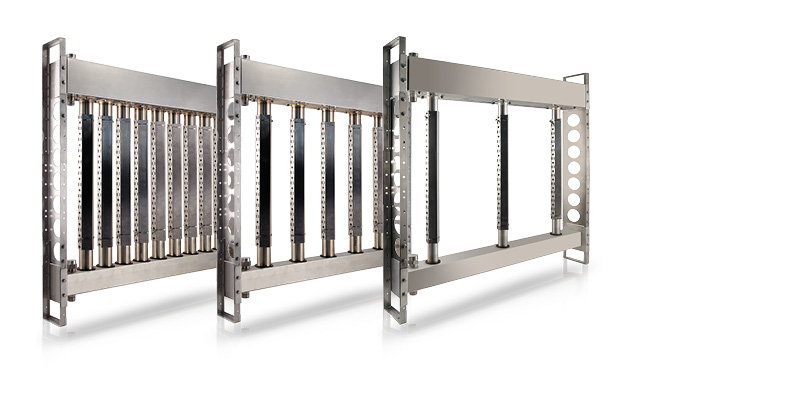

ultimateSAM is a distributor for both pressurised steam and steam at atmospheric pressure; in the latter case it can therefore be used together with Carel humidifiers. SAM stands for Short-Absorption Manifold, meaning a steam distributor with a short absorption distance (even less than 300 mm). It has been designed to be “made to measure” for the AHU or duct, while ensuring low air heat gain (max. 2 °C/4 °F). All of the metal parts installed inside the AHU or duct are made from AISI 304 steel, so as to guarantee hygiene and a long operating life. The features of the ultimateSAM steam distribution system make it the perfect system for all AHU/duct humidification needs, providing designers, installers and service personnel with the best possible solution. The wide range of products, with a vast choice of steam flow-rates and numerous options, make it the ideal system for various applications, including hospitals and the pharmaceutical industry.
