humiSteam Basic
UEY*
General characteristics

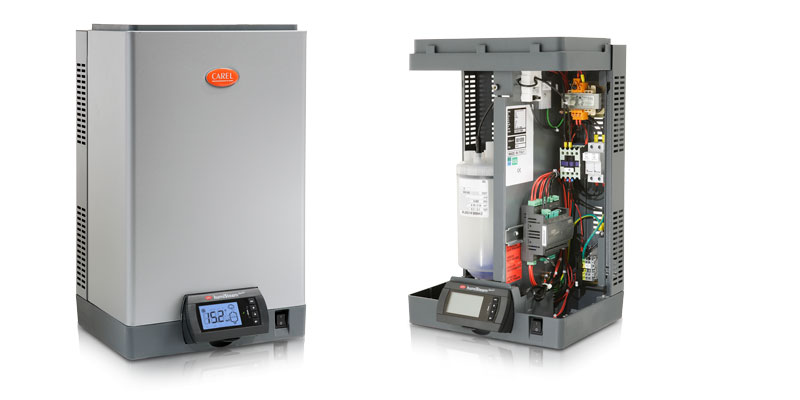

humiSteam basic (Y) is suitable for installation in civil environments, offices, hospitals and industrial facilities, and is designed for installation both in rooms, using the steam blower, and air ducts, using the linear steam distributors.
humiSteam basic is ideal for applications where steam production is controlled by an external signal, i.e. BMS or humidistat, and comes in a range from 1.5 to 65 kg/h.
Steam production is controlled by an external signal:
• ON/OFF mode: a simple contact (for example, a humidistat) starts/stops steam production.
• proportional mode: the humidifier produces a quantity of steam that is directly proportional to the signal (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) generated by the external controller, always between 20% and 100% of maximum capacity.

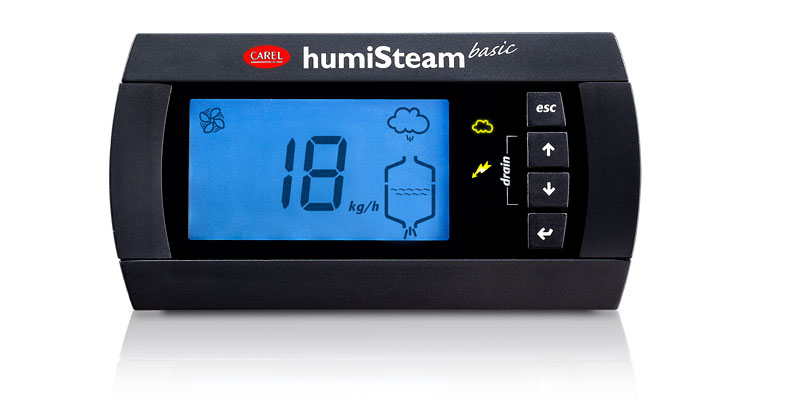

Type "Y" humidifiers have a display with numbers and icons that shows the operating conditions and any diagnostic information extremely clearly and intuitively.
In addition, they come with RS485 interface with Modbus protocol for remote configuration and control via BMS.-
Plus
• AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;
• cylinders with galvanised electrodes and anti-scale filter at bottom, openable cylinders also available;
• steam production with continuous modulation from 20% to maximum rating ;
• built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life.
• automatic water drain after 3 days of inactivity Video
Documentation
Technical
-
Quick Guide
* Entries are ordered by date
Code Description Language Date * Release Code +040000075 Description humiSteam Basic- UEY hydraulic quick guide Language ENG ITA Date 09/11/2009 Release 1.0 -
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300040SV Description humiSteam x-plus Användarmanual Befuktare Language SWE Date 13/02/2020 Release 1.6 Code +0300042RU Description humiSteam Basic Language RUS Date 21/11/2019 Release 1.6 Code +0300042SP Description humiSteam Basic Language POR SPA Date 21/11/2019 Release 1.6 Code +0300042IE Description humiSteam Basic Language ENG ITA Date 21/11/2019 Release 1.6 Code +0300042FD Description humiSteam Basic Language FRE GER Date 21/11/2019 Release 1.6 Code +08C0042EZ Description humiSteam 加湿器/humidifiers Language CHI ENG Date 16/10/2017 Release 1.0 Code +030220311 Description Humiset Language ENG Date 01/09/2014 Release 2.2 Code +030220310 Description humiSet Humidifier Programming Tool Language ITA Date 01/09/2014 Release 2.2 Code +03U0042EN Description humiSteam Basic Language ENG Date 10/05/2013 Release 1.3 Code +03C0042EZ.pdf Description humiSteam 加湿器/humidifiers Language CHI ENG Date 10/05/2013 Release 1.3 Code +0300043EN Description humiSteam Basic- Addendum manual Language ENG Date 02/12/2009 Release 1.0 Code +030220632 Description humiSteam Basic: manual del usario/ user manual Language ENG SPA Date 20/01/2009 Release 2.3 Code +030220631 Description humiSteam Basic Language FRE GER Date 20/01/2009 Release 2.3 Code +030220630 Description humiSteam Basic: User manual/ Manuale d’uso Language ENG ITA Date 20/01/2009 Release 2.3 -
BIM files
* Entries are ordered by date
Code Description Language Date * Release Code BIM files humiSteam Description Language ALL Date 15/05/2020 Release R1
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000018PL Description Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania Language POL Date 15/09/2020 Release 4.1 Code +3000018EN Description Humidity matters! CAREL humidifiers, a solution for every need Language ENG Date 15/09/2020 Release 4.1 Code +3000018DE Description Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. Language GER Date 15/09/2020 Release 4.1 Code +3000018IT Description L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta Language ITA Date 15/09/2020 Release 4.1 Code +3000193NL Description Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen Language DUT Date 15/11/2019 Release 1.1 Code +3000193ES Description Humectación directa Soluciones avanzadas para ambientes industriales y comerciales Language SPA Date 15/11/2019 Release 1.1 Code +3000193DE Description Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel Language GER Date 15/11/2019 Release 1.1 Code +3000193EN Description Direct humidification: Advanced solutions for industrial and commercial environments Language ENG Date 15/11/2019 Release 1.1 Code +3000095RU Description humiSteam the rational choice for any application Language RUS Date 17/03/2015 Release 1.0 Code +3000095ZH Description humiSteam 各种加湿应用的明智之选 Language CHI Date 17/03/2015 Release 1.0 Code +3000095PL Description humiSteam racjonalny wybór dla każdego z zastosowań Language POL Date 17/03/2015 Release 1.0 Code +3000095KR Description humiSteam Language KOR Date 17/03/2015 Release 1.0 Code +3000095PT Description humiSteam a escolha racional adequada a todas as aplicações Language POR Date 17/03/2015 Release 1.0 Code +3000095ES Description humiSteam la elección racional adecuada para cualquier aplicación Language SPA Date 17/03/2015 Release 1.0 Code +3000095DE Description humiSteam Die vernünftige Wahl für jede Anwendung Language GER Date 17/03/2015 Release 1.0 Code +3000095FR Description humiSteam le choix rationnel adapté à chaque application Language FRE Date 17/03/2015 Release 1.0 Code +3000095EN Description humiSteam the rational choice for any application Language ENG Date 17/03/2015 Release 1.0 Code +3000095IT Description humiSteam la scelta razionale adatta ad ogni applicazione Language ITA Date 17/03/2015 Release 1.0 Code +30C240551 Description 印刷应用领域 的湿度控制 Language CHI Date 27/05/2008 Release 1.0 Code +302238347 Description humiSteam: 全新升级 电极式加湿器 Language CHI Date 01/03/2008 Release 1.0 Code +302238345 Description humiSteam: a evolução da espécie dos umidificadores com elétrodos Language POR Date 01/03/2008 Release 1.0 Code +302238597 Description Cold Rooms Language RUS Date 12/09/2007 Release 1.0
Local Information
-
Local Information
* Entries are ordered by date
Code Description Language Date * Release Code +3000018EN Description Humidity matters! CAREL humidifiers, a solution for every need Language ENG Date 15/09/2020 Release 4.1
