pGDN

pGDN
  • General characteristics

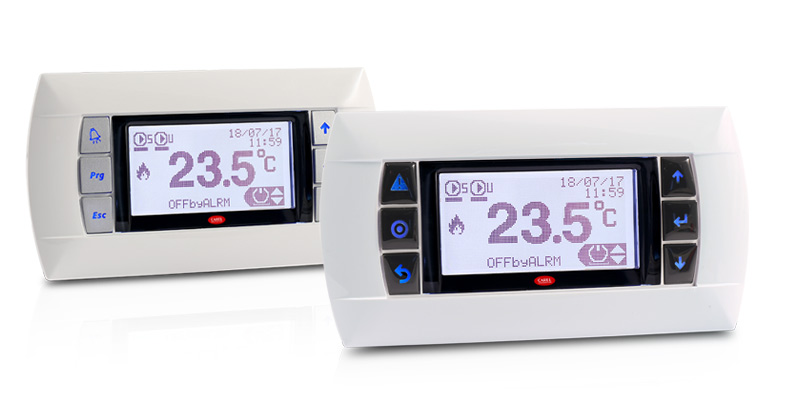

    The pGDN semi-graphic terminals are part of the range of pCO sistema user interfaces designed to offer higher versatility and extensive customisation possibilities. When designing these terminals, CAREL focused special attention on simplicity of programming and the quality of performance, while maintaining a high aesthetic standard. The terminals have a 132x64 pixel backlit WHITE display and a 6-button keypad.
    pGDN features a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
    These terminals can display graphic symbols of various sizes and the main international alphabets, and feature the flexibility and ease of customisation that is the basis for the design of the CAREL pCO/c.pCO sistema family products, offering more demanding customers several customisation possibilities at affordable costs, even for limited quantities. Connection to the pCO controller is available over the RS485 network using the pLAN protocol

  • Plus

    New hardware

    PGN use a full new generation of microprocessors and LCD drivers.

    Higher alarm visibility

    Thanks to the dual-color alarm keys, the alarming indication is much easier to see.

    Preserve backward compatibility

    The code replacement is fully guaranteed by the HW and SW backward compatibility with pGD0 and pGD1/E.












Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050001425

    Description pGN0 / pGN1 / pGNE pCO display grafico / pCO Graphic Display

    Language ENG  ITA

    Date 28/06/2018

    Release 1.2

    Code +05C001425

    Description pGN0 / pGN1 / pGNE pCO 图形显示手操器 / pCO Graphic Display

    Language CHI  ENG

    Date 28/06/2018

    Release 1.2
