iJW for smarter field commissioning

IJW*
iJW for smarter field commissioning
  • General characteristics

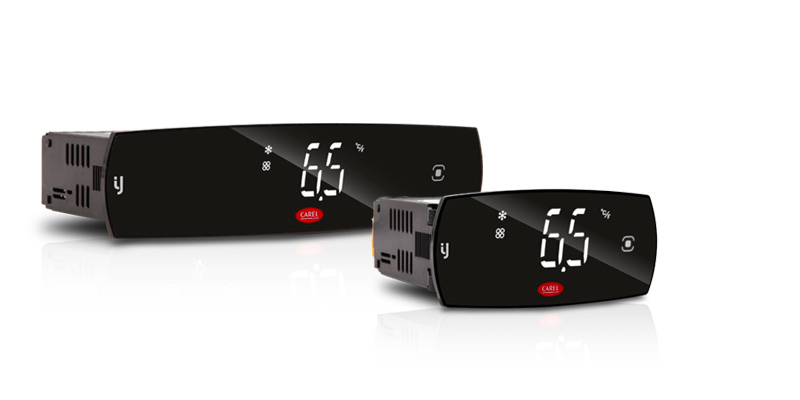

    iJW is the new range of CAREL controllers for refrigeration, aimed at refrigeration engineers operating in the distribution channel. Suitable for both new installations and retrofits, iJW has been designed to simplify the replacement and configuration of the controller on display cabinets, bottle coolers, plug-ins, chest freezers and in many other applications.



    Native NFC and Bluetooth connectivity allows quick and intuitive interfacing to smartphones via the CAREL APPLICA app. The new Wizard for configuring iJW based on the application requirements and system specifications, makes it much simpler to set up the new controller.

    The built-in BMS connectivity port can be used for local and/or remote monitoring without needing for a converter for communication with the supervisor system.



    The frameless, capacitive touch design gives an elegant and professional touch, while also making cleaning easier. The controller’s minimal appearance makes it easy to integrate aesthetically into any type of application and context.



    Product part number Format Application
    (No. of relays)
    BT
    IJWPSA2N01S0724 Small Medium temperature
    (2)
    No
    IJWPSA2B02S0519 Small Medium temperature
    (2)
    Yes
    IJWPSA4N01S0527 Small Low temperature
    Medium temperature
    (4)
    No
    IJWPSA4R02S0518 Small Low temperature (BMS CAREL protocol)
    Medium temperature (BMS CAREL protocol)
    (4)
    No
    IJWPSA4B02S0523 Small Low temperature
    Medium temperature
    (4)
    Yes
    IJWPSA4B07S0517 Small Low temperature
    Medium temperature
    Humidity
    (4)
    Yes
    IJWPLA6B07S0516 Large Low temperature
    Medium temperature
    Humidity
    (6)
    Yes
  • Plus

    Versatility

    The ideal solution for technical service in the field, both for new installations and for replacement and/or maintenance. A small number of product versions can cover a wide variety of refrigeration applications, such as catering displays, bottle coolers, multiplexed cabinets, refrigerated display cases, chest freezers, etc.

    Connectivity and simplicity

    iJW simplifies the initial configuration of the controller using the Wizard, a multilingual procedure that guides users step-by-step through the entire unit commissioning process. The configuration can then be saved to a smartphone, shared with contacts and subsequently imported to other similar units, saving time and optimising the scheduling of activities.

    HACCP

    The Bluetooth® option also enables live monitoring of variables and access to the temperature log. The temperature and alarm logs are easy to export, simplifying compliance with the HACCP protocol for the end user.

    Usability and navigability

    Removable connectors simplify wiring and installation. In addition, the capacitive touch screen keypad, backlit icons and buttons and wide display provide clear visibility and easy and immediate interaction, also for end users.



Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500165ML

    Description iJW Large 6 Relay Start Guide

    Language ENG

    Date 28/07/2022

    Release 2.0

    Code +0500169ML

    Description Warnings

    Language ARA  CHI  DAN  ENG  FIN  FRE  GER  GRE  HUN  IND  ITA  KOR  NOR  POL  POR  RUS  SER  SLO  SPA  SWE  THA

    Date 28/07/2022

    Release 2.0

    Code +0500168ML

    Description iJW Small 2 Relay Start Guide

    Language ENG

    Date 28/07/2022

    Release 2.0

    Code +0500167ML

    Description iJW Tecnical Characteristics

    Language ARA  CHI  DAN  ENG  FIN  FRE  GER  GRE  HUN  IND  ITA  KOR  NOR  POL  POR  RUS  SER  SLO  SPA  SWE  THA

    Date 28/07/2022

    Release 2.0

    Code +0500166ML

    Description iJW Small 4 Relay Start Guide

    Language ENG

    Date 28/07/2022

    Release 2.0

  • Manuals
    Code Description Language Date * Release
    Code +0300103FR

    Description iJW Commande électronique d’intervention in situ et nouvelles installations

    Language FRE

    Date 14/09/2022

    Release 1.0

    Code +0300103DE

    Description iJW Elektronische Steuerung für Vor-Ort-Einsätze und Neuinstallationen

    Language GER

    Date 14/09/2022

    Release 1.0

    Code +0300103EN

    Description iJW Electronic controller for field service and new installations

    Language ENG

    Date 14/09/2022

    Release 1.0

    Code +0300103IT

    Description iJW Controllo elettronico per interventi sul campo e nuove installazioni

    Language ITA

    Date 14/09/2022

    Release 1.0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000176EN - Chillventa 2022

    Description OnShow - Chillventa 2022

    Language ENG

    Date 05/10/2022

    Release 2.0

    Code +3000235IT_low

    Description iJW - La soluzione “smart” per la refrigerazione per interventi sul campo e nuove installazioni

    Language ITA

    Date 29/09/2022

    Release 1.1

    Code +3000235EN_low

    Description iJW - The smart solution for refrigeration for field service and new installations

    Language ENG

    Date 29/09/2022

    Release 1.1
