E4V-A

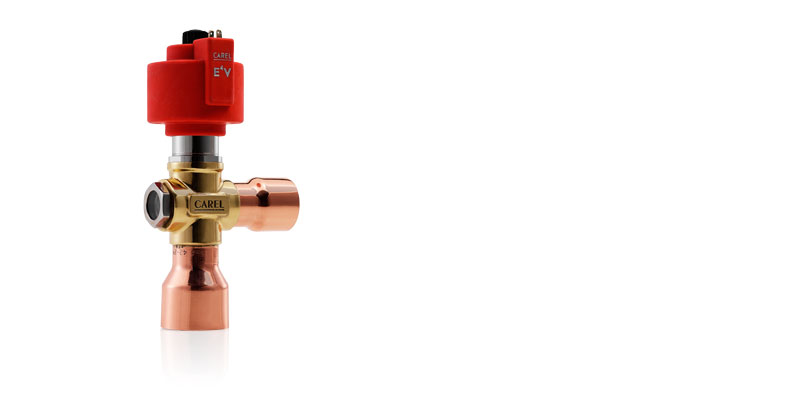

CAREL E4V electronic valve for medium/high capacity chillers and air-conditioning systems, up to a cooling capacity of 280 kW
  • General characteristics

    The Carel E4V electronic valve is designed to act as the expansion device on medium/high capacity chillers and air-conditioning systems, up to a cooling capacity of 280 kW.
    Reliability, wide control capacity, fluid flow in both directions: these three features are all ensured by the E4V expansion valve, satisfying the need for a high product quality combined with operating and installation versatility.
    The innovative characteristic of the E4V is the incorporated sight glass, used to monitor movement of the movable element and refrigerant flow inside the circuit. In addition, the valve is made from modular elements assembled during installation, to simplify maintenance and inspection of the components.

    The standard version - E4V-A - is available in sizes 85, 95 and A1 with 36 ohm two-pole motors; this will be in production until November 2014, and then will be progressively replaced by version E4V-B.







Documentation

Commercial

  • Application Note
    Code Description Language Date Release
    Code +4000022IT

    Description La valvola di espansione elettronica - una soluzione per ridurre le inefficienze energetiche all’avviamento

    Language ITA

    Date 18/04/2013

    Release 1.0

  • Brochure
    Code Description Language Date Release
    Code +3000021ZH

    Description 高效机组的集成解决方案

    Language CHI

    Date 01/03/2010

    Release 1.0
