humiFog direct
General characteristics

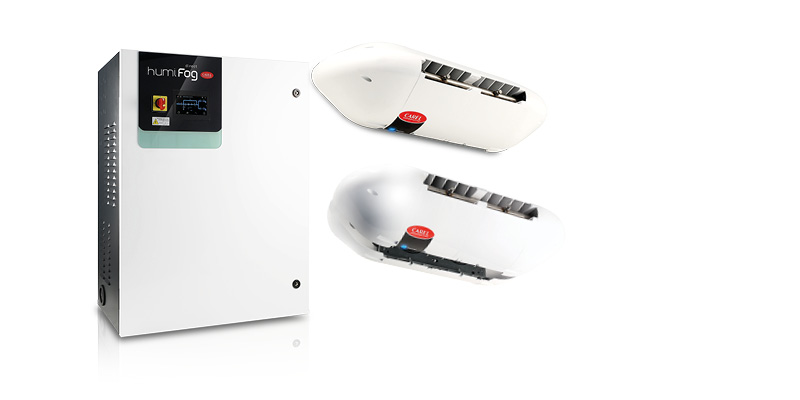

humiFog direct is the new solution by CAREL entirely dedicated to ambient adiabatic humidification.
humiFog direct is a high pressure atomiser which generates a constant water pressure of 70 bar. Thanks to the new ventilation heads, water is atomised in very fine droplets distributed in the environment. The powerful flow of the fans favours spontaneous absorption of atomisation in the air. Relative humidity can thus be controlled wherever required and the advantages of evaporative cooling can be exploited, "absorbing" heat generated by machines inside production sites and decreasing temperature with very low energy consumption.
humiFog expands the humiFog “family” of high-pressure atomisers, extending the range of available capacities, and introducing a wealth of new functionality, which makes this product even easier to install and simpler to use. The control cabinet has everything required inside. In addition to the pump and the electronic controller, it also contains the activation and drain valves for the circuits that supply the various zones. Installation times and costs are reduced to a minimum, because troublesome on-site wiring is no longer required. The system hygiene is guaranteed by automatic flushing cycles and by the use of demineralised water, distributing clean and fresh water in the ambient at any time.
Thanks to the new generation controller cpHC, humiFog direct is a cutting-edge product when compared with all products of the competitors as for connectivity functions.
The web server permits access to the complete functionality of the machine from the comfort of your PC, tablet or smartphone. If instead the unit is part of a system controlled by an external supervision or building automation system, the Modbus and Bacnet protocols are already built in, and available for communication via both serial and Ethernet port. A remote control is also possible by enabling the tERA service.
humiFog direct becomes the best solution for relative humidity control in industrial applications such as paper, printing, wood industry, or in the applications aimed at preserving goods and in barrique cellars.-
Plus
Installation easiness
The control cabinet, the new ventilation heads and the quick-coupling hose kits allow an extremely easy system arrangement, even if the staff is less skilled and has no special tools.
Low energy consumption
The spontaneous evaporation of water droplets in the air removes sensible heat from the environment (0.69 kW for each litre of water that evaporates), with only 4 W of electric power per litre of atomised water.
Top hygiene
Automatic flushing and filling procedures and connections to the water cleaning systems by reverse osmosis always distribute fresh and clean water in the ambient.
Connectivity
Local monitoring of the system through PC, tablet and smartphone, thanks to the integrated Web server. The communications with the main systems for Building Automation is made easier thanks to the Modbus and BACnet communication protocols, both on serial port and on Ethernet port.
Documentation
Technical
-
BIM files
* Entries are ordered by date
Code Description Language Date * Release Code BIM files humiFog direct Description Language ALL Date 11/03/2020 Release R0 -
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300073IT Description humiFog direct Language ITA Date 29/03/2022 Release 1.4 Code +0300073EN Description humiFog direct Language ENG Date 29/03/2022 Release 1.4 Code +0300073FR Description humiFog direct Language FRE Date 29/03/2022 Release 1.4 Code +0300073DE Description humiFog direct Language GER Date 29/03/2022 Release 1.4 Code +0300073ES Description humifog direct Language SPA Date 29/03/2022 Release 1.4 Code +0300073SV Description humiFog direct Language SWE Date 29/03/2022 Release 1.4 Code +0300073RU Description humiFog direct Руководство пользователя Language RUS Date 29/03/2022 Release 1.4 -
Tender Texts
* Entries are ordered by date
Code Description Language Date * Release Code humiFog UA _DE Description Language GER Date 30/04/2021 Release R0 Code humiFog UA _EN Description Language ENG Date 30/04/2021 Release R0 Code humiFog UA_ ITA Description Language ITA Date 29/04/2021 Release R0 Code humiFog UA _FR Description Language FRE Date 29/04/2021 Release R0 Code humiFog UA _ES Description Language SPA Date 29/04/2021 Release R0
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000224FR Description Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R Language FRE Date 15/12/2023 Release 2.0 Code +3000120ZH Description Language CHI Date 12/07/2021 Release 2.0 Code +3000120IT Description humiFog direct la soluzione per l’umidificazione che migliora il tuo business Language ITA Date 07/05/2019 Release 2.0 Code +3000120EN Description humiFog direct the humidification solution that improves your business Language ENG Date 07/05/2019 Release 2.0 Code +3000120ES Description humiFog direct la solución para la humectación que mejora tu negocio Language SPA Date 07/05/2019 Release 2.0 Code +3000120FR Description humiFog direct la solution de l'humidification qui gonfle vos affaires Language FRE Date 07/05/2019 Release 2.0 Code +3000120DE Description humiFog direct Ihre Befeuchtungslösung für mehr Business Language GER Date 07/05/2019 Release 2.0 Code +3000120RU Description humiFog direct увлажнитель для повышения эффективности производства Language RUS Date 07/05/2019 Release 2.0 Code +3000120BG Description humiFog direct Решението за овлажняване, което прави Вашия бизнес по-добър Language Date 07/05/2019 Release 2.0 Code +3000120NL Description humiFog direct De bevochtigingsoplossing die uw productie verbeterd Language DUT Date 07/05/2019 Release 2.0 Code +3000173EN Description Solutions for the tobacco industry Excellence in humidity control and monitoring Language ENG Date 18/04/2018 Release 1.0 Code +3000173IT Description Soluzioni per l’industria del tabacco L’eccellenza per il controllo e il monitoraggio dell’umidità Language ITA Date 18/04/2018 Release 1.0 -
Other related documentation
* Entries are ordered by date
Code Description Language Date * Release Code +3000224IT Description Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R Language ITA Date 13/03/2024 Release 2.1 Code +3000224EN Description Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems Language ENG Date 13/03/2024 Release 2.1 Code +3000223IT Description Soluzione completa di servizi dedicata agli umidificatori CAREL Language ITA Date 21/12/2021 Release 1.0 Code +3000223EN Description Complete services solution for CAREL humidifiers Language ENG Date 21/12/2021 Release 1.0 Code +3000223ES Description Solución completa de servicios dedicada a los humidificadores CAREL Language SPA Date 21/12/2021 Release 1.0 Code +3000223FR Description Solution complète de services pour les humidificateurs CAREL Language FRE Date 21/12/2021 Release 1.0 Code +3000223PL Description Kompletne rozwiązanie serwisowe dla nawilżaczy CAREL Language POL Date 21/12/2021 Release 1.0 Code +3000018IT Description L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta Language ITA Date 15/09/2020 Release 4.1 Code +3000018DE Description Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. Language GER Date 15/09/2020 Release 4.1 Code +3000018EN Description Humidity matters! CAREL humidifiers, a solution for every need Language ENG Date 15/09/2020 Release 4.1 Code +3000018ES Description ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad Language ENG SPA Date 15/09/2020 Release 4.1 Code +3000018PL Description Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania Language POL Date 15/09/2020 Release 4.1 Code +3000193IT Description Umidificazione diretta: Soluzioni all’avanguardia per ambienti industriali e commerciali Language ITA Date 15/11/2019 Release 1.1 Code +3000193EN Description Direct humidification: Advanced solutions for industrial and commercial environments Language ENG Date 15/11/2019 Release 1.1 Code +3000193DE Description Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel Language GER Date 15/11/2019 Release 1.1 Code +3000193ES Description Humectación directa Soluciones avanzadas para ambientes industriales y comerciales Language SPA Date 15/11/2019 Release 1.1 Code +3000193NL Description Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen Language DUT Date 15/11/2019 Release 1.1 Code +3000054ES Description Soluciones para el ahorro energético en los data center Language SPA Date 11/10/2016 Release 2.0 -
Success Story
* Entries are ordered by date
Code Description Language Date * Release Code +4000066IT Description Stop ai fermi macchina in Ferrarelle La soluzione CAREL in ambiente Language ITA Date 07/02/2018 Release 1.0 Code +4000066EN Description No more machinery downtime at Ferrarelle CAREL’s in-room solution Language ENG Date 07/02/2018 Release 1.0
Images
-
High resolution images
* Entries are ordered by date
Code Description Language Date * Release Code humiFog Direct_2019_gamma_2 Description CAREL-Pressurised water humidifier-Adiabatic Humidifier Language ALL Date 01/07/2021 Release R.0
