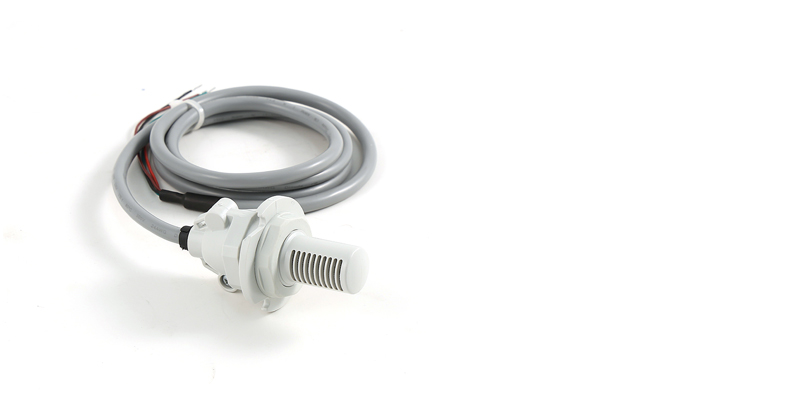

Compact temperature and humidity sensor
DPR*
General characteristics
The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:
- Air handling units;
- Air-to-air heat recovery units;
- CRAC units (Computer room air conditioning units), both perimeter and In-row;
It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
Available with 1 m and 3 m long cables.
Documentation
Technical
-
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +050000585 Description Sensore compatto temperatura e umidità / Compact temperature and humidity sensor Language ENG ITA Date 21/07/2016 Release 1.2
