E3V fully welded

E3V-B*

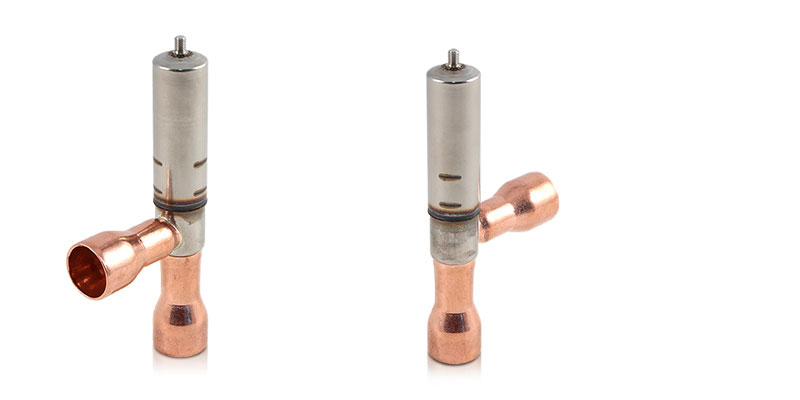

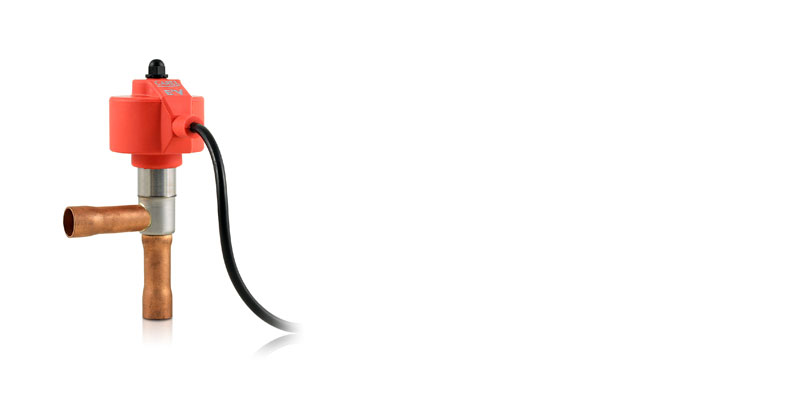

CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW
  • General characteristics

    The CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW, and represent the Carel solution for medium-capacity valves.
    The E3V has been designed with special care to the minimum details, so as to ensure a wide control capacity and at the same time guarantee high reliability with fluid flow in both directions: the latter feature is especially useful and advantageous for heat pump applications.
    This product has been designed to be installed as the expansion valve in refrigerant circuits, and uses a pressure probe and temperature probe to calculate superheat, which is used as the control signal.

    Starting from July 2014, the E3V-B valve will progressively replace the E3V-A and E3V-U valves in the Carel E3V product line. The new range will feature five different sizes, three of which (45, 55, 65) fitted with two-pole motors, and two (35, 45) with single-pole motors. The main characteristic that will distinguish these valves from the previous versions is that the connections are completely welded; an additional strength is the versatility of the possible applications the valve can be used in.



Documentation

Technical

  • Technical Leaflets
    Code Description Language Date Release
    Code +050001670

    Description E3V-B bipolare - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 17/07/2017

    Release 1.5

    Code +050001665

    Description E3V-B unipolare - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 15/11/2016

    Release 1.3

  • 2D/3D drawings
    Code Description Language Date Release
    Code 2d-3d E3VxxBWR10_bipolar

    Description 2d-3d drawings

    Language ALL

    Date 16/03/2015

    Release R0

    Code 2d-3d E3VxxBSR10_bipolar

    Description 2d-3d drawings

    Language ALL

    Date 16/03/2015

    Release R0

    Code 2d-3d E3VxxBSM10_bipolar

    Description 2d-3d drawings

    Language ALL

    Date 16/03/2015

    Release R0

    Code 2d-3d E3VxxBSM30 - E3VxxBSM50_unipolar

    Description 2D-3D drawings

    Language ALL

    Date 16/03/2015

    Release R0

    Code 2d-3d E3VxxBSM70_unipolar

    Description 2D-3D drawings

    Language ALL

    Date 16/03/2015

    Release R0


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000021ZH

    Description 高效机组的集成解决方案

    Language CHI

    Date 01/03/2010

    Release 1.0
