pGDT (graphic display) NA

PGDT*

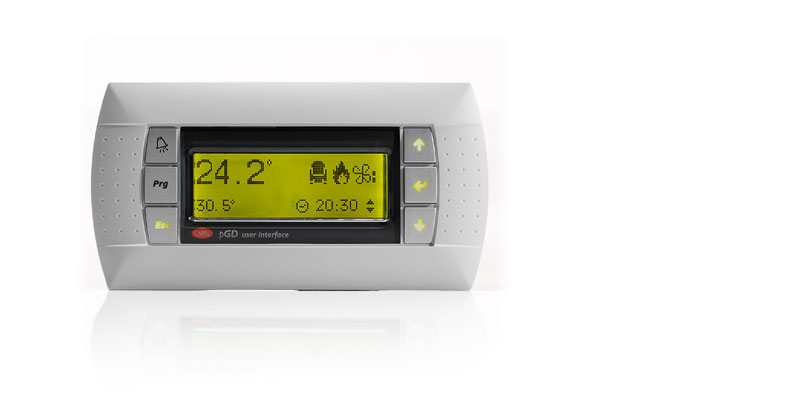

The pGD graphic display, the electronic device compatible with the previous PCOI/PCOT line terminals
  • General characteristics

    The pGD graphic display is an electronic device that is compatible with the previous PCOI/PCOT line terminals; it allows complete management of graphics by the display of icons (defined at an application software development level), as well as the management of international fonts, in two sizes: 5x7 and 11x15 pixels. The application software resides on the pCO board, and therefore the terminal does not require any additional software for operation. Furthermore, the terminals feature a wide operating temperature range (-20T60 °C) and the front panel ensures a high index of protection (IP55).


Documentation

Technical

  • Technical Leaflets
    Code Description Language Date Release
    Code +050001180

    Description PGD0000T00 - pCO display grafico / pCO graphic display

    Language ENG  ITA

    Date 13/10/2008

    Release 1.1


Commercial

  • Brochure
    Code Description Language Date Release
    Code +302240670

    Description Industria del vino Sistemi per il controllo di temperatura e umidità

    Language ITA

    Date 28/05/2009

    Release 1.0

    Code +302240671

    Description Wine industry Temperature and humidity control systems

    Language ENG

    Date 28/05/2009

    Release 1.0
