Ratiometric trasducers welded version - SPKS*

SPKS*

General characteristics

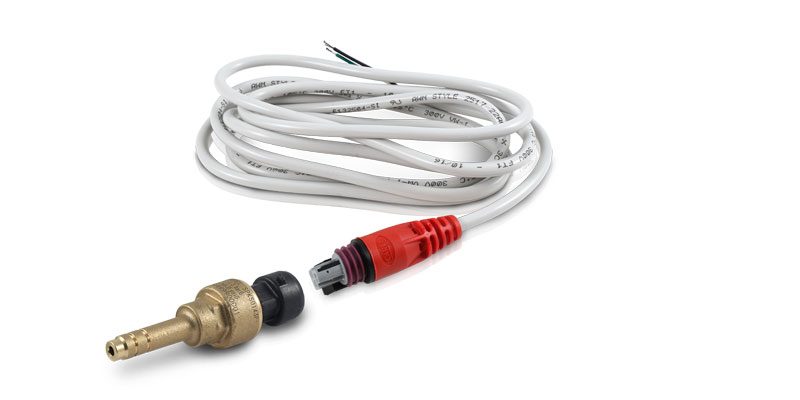

CAREL SPKS ceramic ratiometric pressure transducers have been developed for use in commercial refrigeration and air-conditioning applications.
They are installed directly on the copper pipes, making them especially suitable for applications in which all connections and joints need to be eliminated in order to ensure greater safety against gas leaks.
The sensors comply with European F-GAS requirements (EC regulation 842/2006), specifying that devices installed on the system must be made tight by welding.

Documentation

Code	Description	Language	Date *	Release
Code 3D SPKS_P1	Description 2D-3D drawings	Language ALL	Date 11/03/2021	Release R0

Manuals

Code	Description	Language	Date *	Release
Code +030220975	Description Sensor pressure transducer	Language ENG ITA	Date 29/09/2023	Release 1.4

Quick Guide

Code	Description	Language	Date *	Release
Code +040010026	Description 'Sondes et capteurs / Fühler und Sensoren Guide pour le choix et l'installation optimale Auswahl- und Installationshilfe	Language FRE GER	Date 25/06/2021	Release 1.2
Code +040010025	Description Sonde e sensori / Probes and sensors Guida alla scelta e all'installazione ottimale Selection and optimal installation guide	Language ENG ITA	Date 25/06/2021	Release 1.2

Code	Description	Language	Date *	Release
Code PH19LSP304-SPKS0143P	Description CAREL Ratiometric trasducers welded version - Sensor pressure transducer - Sensor and protection device	Language ALL	Date 11/03/2022	Release R.0
Code PH17LSP307-SPKC002310	Description CAREL Ratiometric trasducers welded version - Sensor pressure transducer - Sensor and protection device	Language ALL	Date 11/03/2022	Release R.0
