Level sensor

LSR*

  • General characteristics

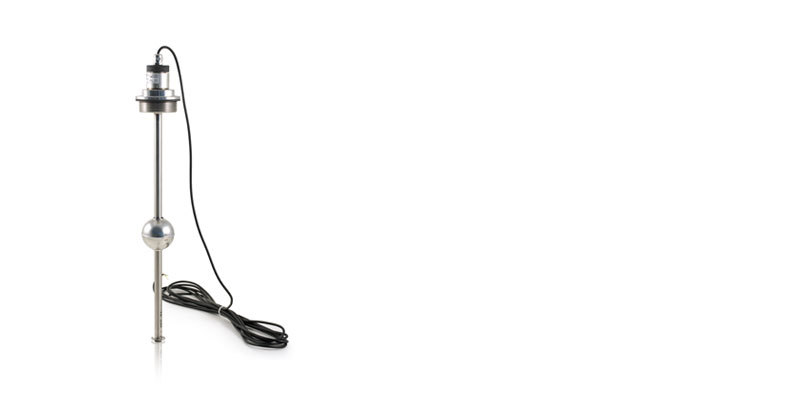

    This level sensor measures the amount of refrigerant in heat exchangers. When there is a change in level, the fl oat, fi tted with a magnet, slides on a vertical rod and magnetically activates an electrical contact on the rod, providing a resistive output signal that is proportional to the level measured.
    The output must be connected to a Carel electronic controller confi gured for this function.
    The amount of fluid can be determined based on the resistance measurement.
    The sensoris made from stainless steel, and therefore can resist extreme conditions where compatible with this material.




Documentation

Technical

  • Technical Leaflets
    Code Description Language Date Release
    Code +0500075ML

    Description Il sensore di livello (a galleggiante per liquidi refrigeranti) / Level sensor (fl oat for liquid refrigerants) / Le capteur de niveau (fl otteur pour liquides de refroidissement) /Füllstandsensor (Schwimmer für Kältemittel) / El sensor de nivel (de fl otador para líquidos refrigerantes)

    Language ENG  FRE  GER  ITA  SPA

    Date 03/04/2017

    Release 1.3
