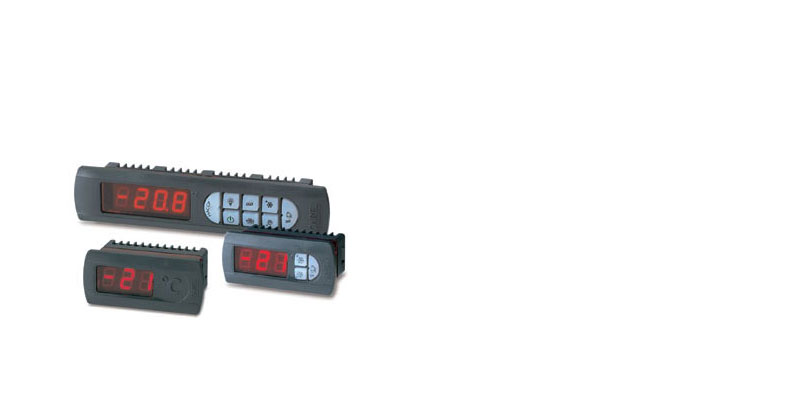

MasterCase user terminals
This terminal has the same appearance and drilling template (32x74 mm) as all the controllers in the plug-in series.
The innovations introduced with this new-concept controller have been focused on maintaining the same "feel" for those who use the instruments in the plug-in range. This is important in both aesthetic and functional terms, as new users of this controller require very little time to be able to fully exploit all the functions.
As well as being aesthetically pleasing, this display features numerous functions. The display has 4 digits, the keypad has silicon buttons and is thus more ergonomic and reliable than the classic polycarbonate version. The buttons are backlit and easy to use, providing direct access to the functions: HACCP, light, defrost and continuous cycle. This display can also be easily and economically customised, thanks to the removable frame. One very important featere is its size: just 22 mm. deep.
Display terminal (PST*VR*)
This can always be connected in parallel to the user terminal for the setting parameters.
It can be used to display the temperature from the third probe, located in the hot point of the cabinet as envisioned by the standard EN 441-13
- Technical Leaflets * Entries are ordered by date
Code Description Language Date * Release Code +050003920 Description Terminali PST e IR/ PST and IR repeaters Language ENG ITA Date 10/06/2009 Release 2.1
- Manuals * Entries are ordered by date
Code Description Language Date * Release Code +030220221 Description MasterCase Language ENG Date 30/10/2006 Release 1.2 Code +030220220 Description MasterCase Language ITA Date 30/10/2006 Release 1.2
- Brochure * Entries are ordered by date
Code Description Language Date * Release Code +302240373 Description Retail sistema...the one solution Language GER Date 09/06/2010 Release 4.0 Code +302240377 Description retail... the one solution Language RUS Date 07/02/2007 Release 4.1 Code +302240375 Description retail sistema...the one solution Language POR Date 07/02/2007 Release 4.1 Code +302240374 Description Retail sistema...the one solution Language SPA Date 07/02/2007 Release 4.1 Code +302240371 Description Retail sistema...the one solution Language ENG Date 09/10/2006 Release 4.0 Code +302240370 Description Retail Solutions... the one solution Language IND Date 09/10/2006 Release 4.0
