humiSteam Xplus

UEX*

  • Plus

    • AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;
    • cylinders with galvanised electrodes and anti-scale filter at bottom, openable cylinders also available;
    • steam production with continuous modulation from 20% to maximum rating (10% for 90 & 130 kg/h models);
    • built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life.
    • automatic water drain after 3 days of inactivity
  • General characteristics

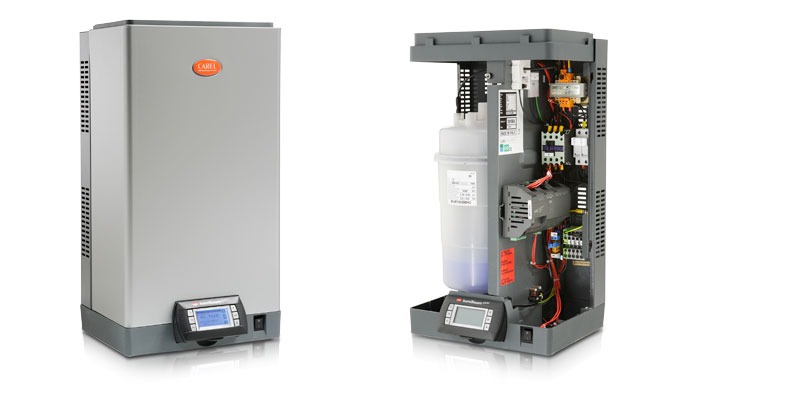

    Type "X" humiSteam humidifiers represent Carel's high-end solution in immersed electrode humidifiers. They have a built-in controller with graphic display and keypad for programming and controlling operation.
    The following modes can be selected at any time:
    • ON/OFF by external humidistat;
    • proportional to external signal;
    • proportional to external signal plus a maximum humidity limit probe in the duct;
    • modulating based on set point and humidity probe reading ;
    • modulating based on set point and humidity probe reading and limit probe in the duct.
    Steam flow-rate is modulated continuously from 20 to 100% of maximum capacity (10 to 100% in the 90 and 130 kg/h models), except for in ON/OFF mode, where production is all or nothing.
    Type "X" humiSteam humidifiers can accept the following external signals, selected on the keypad: voltage-free contact from humidistat, 0-1 V, 0-10 V, 2-10 V, 0-20 mA, 4-20 mA.
    Type "X" controllers exploit all the advantages of pCO technology, the family of CAREL programmable controllers:

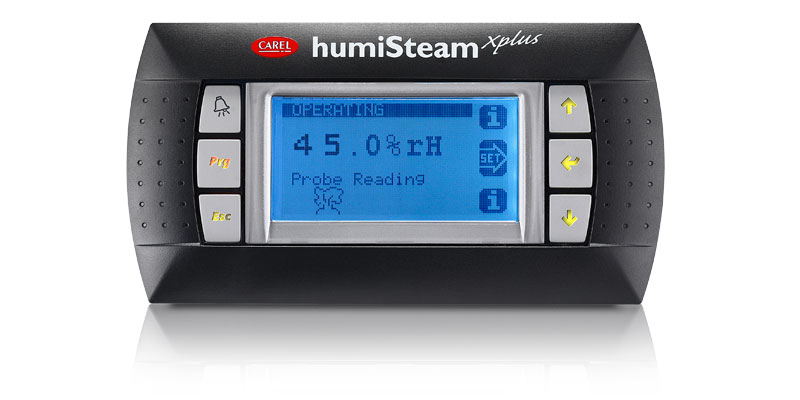

    • easy to use, graphic display with clear messages in different languages;
    • operation based on daily and weekly time bands with variable set points;
    • BMS connectivity via various types of LAN (e.g.: Modbus® (standard), BACnet™, LON®);
    • complete diagnostics with text messages, alarm log with time stamping;
    • remote diagnostics via GSM (optional);
    • automatic drain due to inactivity.


Documentation

Technical

  • Manuals
    Code Description Language Date Release
    Code +0300040PT

    Description humiSteam x-plus humidifiers

    Language POR

    Date 17/03/2017

    Release 1.5

    Code +0300040RU

    Description humiSteam x-plus-Руководство пользователя

    Language RUS

    Date 17/03/2017

    Release 1.5

    Code +0300040IT

    Description humiSteam x-plus-Manuale d’uso

    Language ITA

    Date 17/03/2017

    Release 1.5

    Code +0300040FR

    Description humiSteam x-plus-Manuel d’utilisation

    Language FRE

    Date 17/03/2017

    Release 1.5

    Code +0300040FI

    Description humiSteam x-plus- Käyttöohjekirja

    Language FIN

    Date 17/03/2017

    Release 1.5

    Code +0300040ES

    Description humiSteam x-plus- Manual del usuario

    Language SPA

    Date 17/03/2017

    Release 1.5

    Code +0300040EN

    Description humiSteam x-plus-User manual

    Language ENG

    Date 17/03/2017

    Release 1.5

    Code +0300040DE

    Description humiSteam x-plus

    Language GER

    Date 17/03/2017

    Release 1.5

    Code +030220311

    Description Humiset

    Language ENG

    Date 01/09/2014

    Release 2.2

    Code +030220310

    Description humiSet Humidifier Programming Tool

    Language ITA

    Date 01/09/2014

    Release 2.2

    Code +0300040ZH

    Description humiSteam x-plus 加湿器

    Language CHI

    Date 10/05/2013

    Release 1.3

    Code +03U0040FR

    Description humiSteam x-plus humidificateurs à vapeur

    Language FRE

    Date 10/05/2013

    Release 1.3

    Code +03U0040EN

    Description humiSteam x-plus steam humidifiers

    Language ENG

    Date 10/05/2013

    Release 1.3

    Code +0300041EN

    Description humiSteam x-plus Addendum manual

    Language ENG

    Date 24/08/2012

    Release 1.1

    Code +030220625

    Description humiSteam x-plus паровые увлажнители воздуха

    Language RUS

    Date 04/08/2009

    Release 1.4

    Code +030220624

    Description humiSteam x-plus humidificadores

    Language SPA

    Date 04/08/2009

    Release 1.4

    Code +030220623

    Description humiSteam x-plus Befeuchter

    Language GER

    Date 04/08/2009

    Release 1.4

    Code +030220622

    Description humiSteam x-plus humidificateurs

    Language FRE

    Date 04/08/2009

    Release 1.4

    Code +030220621

    Description humiSteam x-plus humidifiers

    Language ENG

    Date 04/08/2009

    Release 1.4

    Code +030220620

    Description humiSteam x-plus Manuale d’uso

    Language ITA

    Date 04/08/2009

    Release 1.4


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000095PL

    Description humiSteam racjonalny wybór dla każdego z zastosowań

    Language POL

    Date 17/03/2015

    Release 1.0

    Code +3000095PT

    Description humiSteam a escolha racional adequada a todas as aplicações

    Language POR

    Date 17/03/2015

    Release 1.0

    Code +3000095ES

    Description humiSteam la elección racional adecuada para cualquier aplicación

    Language SPA

    Date 17/03/2015

    Release 1.0

    Code +3000095DE

    Description humiSteam Die vernünftige Wahl für jede Anwendung

    Language GER

    Date 17/03/2015

    Release 1.0

    Code +3000095FR

    Description humiSteam le choix rationnel adapté à chaque application

    Language FRE

    Date 17/03/2015

    Release 1.0

    Code +3000095EN

    Description humiSteam the rational choice for any application

    Language ENG

    Date 17/03/2015

    Release 1.0

    Code +3000095IT

    Description humiSteam la scelta razionale adatta ad ogni applicazione

    Language ITA

    Date 17/03/2015

    Release 1.0

    Code +3000095RU

    Description humiSteam the rational choice for any application

    Language RUS

    Date 17/03/2015

    Release 1.0

    Code +302238347

    Description humiSteam: 全新升级 电极式加湿器

    Language CHI

    Date 01/03/2008

    Release 1.0

    Code +302238345

    Description humiSteam: a evolução da espécie dos umidificadores com elétrodos

    Language POR

    Date 01/03/2008

    Release 1.0

    Code +302238597

    Description Cold Rooms

    Language RUS

    Date 12/09/2007

    Release 1.0
