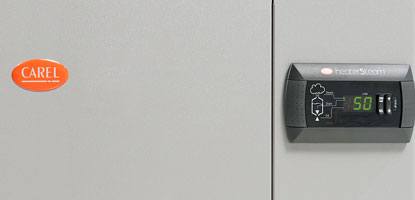

heaterSteam V2

UR*

  • Plus

    Only for the U.S. market

    • precision ±1% U.R.
    • the heating elements are embedded in light cast alloys for perfect heat distribution;
    • the temperature sensors inserted in the heating elements prevent any over-heating;
    • the heating elements, coated with non-stick material (mod. full optional) are very easy to clean;
    • continuous modulation of production from 0 to 100% of the nominal capacity;
    • Anti Foaming System to prevent the emission of droplets with the steam;
    • modulating limit probe to avoid any condensation in the duct (model H);
    • water pre-heating function (mod. full optional);
  • General characteristics

    Only for the U.S. market

    The new range of heaterSteam humidifiers with immersed heaters includes models from 2 to 80 kg/h of steam, and can operate with drinking or demineralized water. The use of demineralized water reduces maintenance virtually to zero. heaterSystem features exclusive technological solutions covered by a patent, such as the electric heaters included in cast aluminium alloy with a large exchange surface area, each with a temperature sensor inside. The temperature sensor has two functions: protection against over-heating, for maximum reliability over time, and detection of excessive deposit of limestone well in advance, to allow proper preventive maintenance.
    The modulating control with solid state relays guarantees high precision in humidity control, making heater Steam the ideal solution even for the most demanding applications.
    For each capacity there are two variants: base and full optional.
    The full optional machines, compared to the base ones, have thermal insulation around the boiler for maximum energy saving, and the heating elements are coated with non-stick material to facilitate the detachment of limestone.
    They also have a water temperature sensor that allows the useful pre-heating function, for a quick response to any humidification request.
    All models feature an automatic system to measure the conductivity of the supply water which optimizes the management of drainage without requiring, in general, the analysis of water during installation. This function also means energy saving and reduction of maintenance.


Documentation

Technical

  • Certificates
    Code Description Language Date Release
    Code tuv_6

    Description heaterSteam: TUV certification

    Language GER

    Date 27/06/2003

    Release

    Code tuv_5

    Description heaterSteam: TUV certification

    Language ENG  FRE  GER  ITA  POR  SPA

    Date 27/06/2003

    Release

    Code ETL_3

    Description heaterSteam 20-30 kg/h: ETL certification

    Language ENG  FRE  GER  ITA  POR  SPA

    Date 27/11/2002

    Release

    Code ETL_2

    Description heaterSteam 6-10 kg/h: ETL certification

    Language ENG  FRE  GER  ITA  POR  SPA

    Date 27/11/2002

    Release

    Code ETL_1.

    Description heaterSteam 2-4 kg/h: ETL certification

    Language ENG  FRE  GER  ITA  POR  SPA

    Date 27/11/2002

    Release

  • Manuals
    Code Description Language Date Release
    Code +0300080DE.pdf

    Description heaterSteam - UR Befeuchter mit elektrischen Heizelementen

    Language GER

    Date 18/05/2017

    Release 1.2

    Code +0300075FI

    Description heaterSteam - UR Vastustoiminen kostutin

    Language FIN

    Date 29/09/2015

    Release 1.2

    Code +0300075ES

    Description heaterSteam - UR Humidifi cador por resistencias eléctricas

    Language SPA

    Date 29/09/2015

    Release 1.2

    Code +0300075PT

    Description heaterSteam - UR Humidifi cador de resistências elétricas

    Language POR

    Date 29/09/2015

    Release 1.2

    Code +0300075DE

    Description heaterSteam - UR Befeuchter mit elektrischen Heizelementen

    Language GER

    Date 29/09/2015

    Release 1.2

    Code +0300075FR

    Description heaterSteam - UR Humidificateur à résistances électriques

    Language FRE

    Date 29/09/2015

    Release 1.2

    Code +0300075IT

    Description heaterSteam - UR Umidificatore a resistenza elettriche

    Language ITA

    Date 29/09/2015

    Release 1.2

    Code +0300075EN

    Description heaterSteam - UR Electric resistance humidifier

    Language ENG

    Date 29/09/2015

    Release 1.2

    Code +030220311

    Description Humiset

    Language ENG

    Date 01/09/2014

    Release 2.2

    Code +030220310

    Description humiSet Humidifier Programming Tool

    Language ITA

    Date 01/09/2014

    Release 2.2

    Code +030222014

    Description heaterSteam - UR: Humidificador por resistencias eléctricas

    Language SPA

    Date 31/10/2012

    Release 2.4

    Code +030222013

    Description heaterSteam - UR: Befeuchter mit elektrischen Heizelementen

    Language GER

    Date 31/10/2012

    Release 2.4

    Code +030222012

    Description heaterSteam - UR: Humidificateur à résistances électriques

    Language FRE

    Date 31/10/2012

    Release 2.4

    Code +030222011

    Description heaterSteam - UR: electrical heater humidifier

    Language ENG

    Date 31/10/2012

    Release 2.4

    Code +030222010

    Description heaterSteam - UR:umidificatore a resistenze elettriche

    Language ITA

    Date 31/10/2012

    Release 2.4


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000056FR

    Description heaterSteam:précision et fiabilité optimales

    Language FRE

    Date 01/03/2014

    Release 2.0

    Code +3000056NL

    Description heaterSteam: de beste precisie en betrouwbaarheid

    Language DUT

    Date 01/03/2014

    Release 2.0

    Code +3000056IT

    Description heaterSteam: la migliore precisione e affidabilità

    Language ITA

    Date 01/03/2014

    Release 2.0

    Code +3000056ES

    Description heaterSteam: la máxima precisión y fiabilidad

    Language SPA

    Date 01/03/2014

    Release 2.0

    Code +3000056EN

    Description heaterSteam: the best precision and reliability

    Language ENG

    Date 01/03/2014

    Release 2.0

    Code +3000056DE

    Description heaterSteam: höchste Präzision und Zuverlässigkeit

    Language GER

    Date 01/03/2014

    Release 2.0

    Code +3000056ZH

    Description heaterSteam 精确的、可靠的加湿方案 适用于各种类型应用

    Language CHI

    Date 03/01/2014

    Release 2.0

    Code +302238597

    Description Cold Rooms

    Language RUS

    Date 12/09/2007

    Release 1.0
