E3V smart

E3V-S*

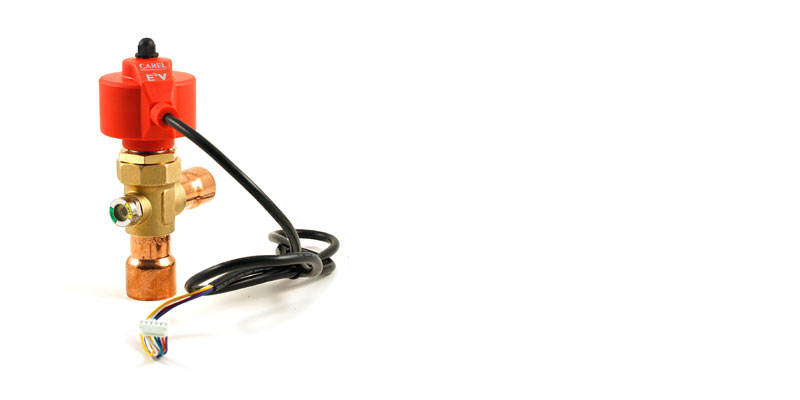

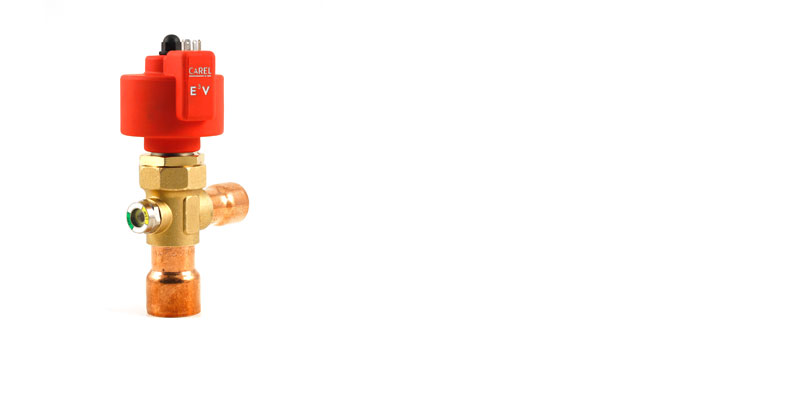

CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW
CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW, and represent the Carel solution for medium-capacity valves

  • General characteristics

    The CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW, and represent the Carel solution for medium-capacity valves.
    The E3V has been designed with special care to the minimum details, so as to ensure a wide control capacity and at the same time guarantee high reliability with fluid flow in both directions: the latter feature is especially useful and advantageous for heat pump applications.
    This product has been designed to be installed as the expansion valve in refrigerant circuits, and uses a pressure probe and temperature probe to calculate superheat, which is used as the control signal.

    The E3V-Smart version brings improved performance to the vast range of E3V series products, thanks to the new composite movable element and the addition of a filter to protect the gasket. This solution ensures significant improvements in performance, as well as the possibility to operate at refrigerant temperatures up to 100 °C. Sizes 55 and 65 are fitted with two-pole motors, while size 35 has a single-pole motor; size 45 can be equipped with either.

    Resistance to high temperatures offers completely new opportunities for hot gas injection applications, with a new model called "E3V-H Smart HOT GAS" also available, in sizes 45, 55, 65.



Documentation

Technical

  • Technical Leaflets
    Code Description Language Date Release
    Code +050001565

    Description E3V-S - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 23/10/2017

    Release 1.8

    Code +050001585

    Description E3V-SMART Unipolar - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 15/11/2016

    Release 1.5


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000021ZH

    Description 高效机组的集成解决方案

    Language CHI

    Date 01/03/2010

    Release 1.0
