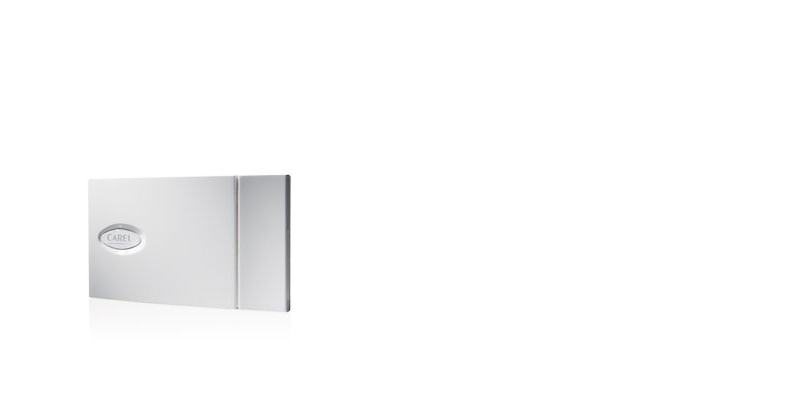

Serial Wall probe with serial RS485 output/with analogic output

DPW* RS485 - DPW* analogic
CAREL probes
  • General characteristics

    The CAREL DPW* series serial probes are devices used for applications in the air-conditioning, refrigeration, heating and air handling sectors. These are installed in combination with the controllers that feature the serial connection. As well as the wall-mounted room probes, industrial and duct versions are also available. These probes use a RS485 serial connection. This brings significant savings in installation costs, a reduction in the connections and the simplification of the connections, as a large number of probes can be connected to the same serial channel: maximum 32 units, within the limits defined by the controller used. The family is made up of various models that differ based on the combination of the temperature and humidity sensor and with or without optical isolation of the RS485 serial connection. The combined models (temperature and humidity) include the function for calculating the dewpoint, available as a read-only variable. The temperature and humidity measurement precision is better than probes with voltage or current output, as the conversion of the signal and the analogue measurement by the controllers is avoided.
